Exercise
Hydraulic Cylinder Calculation
Now that you have learned about undercut, do the
following calculation for the hydraulic cylinder and input your answer.
The unit of dimension is mm.

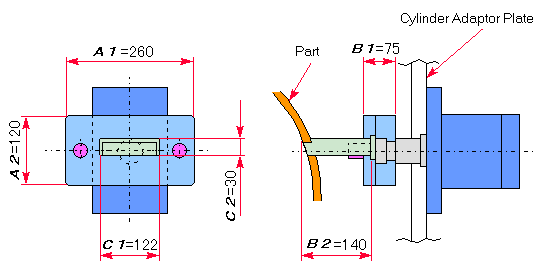

[Hydraulic Cylinder, Left Side, Front]
[Detail of undercut]
|

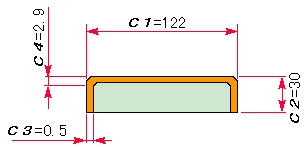

[Section of undercut]
|
What is the inner diameter of the hydraulic cylinder
used for the undercut in the figure below?
Take note that the calculation of S2 is done without considering errors in
product's thickness.
